Multifunctional Waist Axe
Product Description
Multifunctional Fire Rescue Waist is a versatile hand tool set shovel, axe, hammer, pry, saw, and other functions
as one of the portable hand tool. It is a good rescue helper carried by the army, armed police, fire fighting and
rescue personnel. Moreover, it can be used not only in the fire, disaster field (broken doors, windows, boards and
earthquake, collapse, vehicle accidents.etc)and other special occasions, but also a variety of rescue problems
can be solved. It is one of the breaking rescue tools for survival in outdoor activities.
Application
1.Traffic accident and air disaster rescue,
2. Earthquake and other geological disasters rescues,.
3. Collapse
4. vehicle accident and other special occasions
Feature

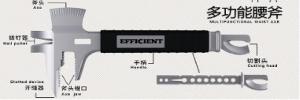

(picture one)
1. Available for chopping wood or iron, and also break 6.5mm steel.
2 Cutting edge of Axe, can be used to cut wood frame structure, wooden doors, wooden windows and so on.
3. Handle blade used as trough and cut steel and iron combined with another axe. Handle blade and cutting saw
can be used interchangeably, part of the handle blade and the main cutting saw adopt button setting to limit the
location and easy to operate, reliable and beautiful, non-slip handle design with rubber structure.
4. Sharp chisel can impact drilling hard objects, wire hook groove can hook wire type.
(Picture two)
1. Available for chopping wood or iron, and also break 5mm steel. The axe surface adopts new structure which
can reduce the resistance.
2. You can pry standard nails from the wood, but the greater force required thicker nails.
3. Slotted device can be used on a wood or 1.5mm steel to Gouge export, so that other tools could enter easily.
4. Axe jaw not only can be used to break wood board less than 21mm or to distort the thin steel sheet, but also
screw the edge distance 10/16/18/20 four specifications fasteners.
5. Gutting head can be used to cut 2.5mm steel or automotive protective glass, the cutting head is extensible and
can be used alone.
Technical Parameters
|
Minimum Arm Strength
|
7.5in
|
190mm
|
|
Maximum Arm Strength
|
11.4ibs
|
290mm
|
|
The Minimum Cutting radius of gyration
|
11.8ibs
|
300mm
|
|
The Maximum Cutting radius of gyration
|
15.8ibs
|
400mm
|
|
Max Opening disaster
|
0.16ibs
|
4mm
|
|
Hand Force
|
2ibs
|
9N
|
|
Weight
|
1.98ibs
|
0.9kg
|
|
Dimension(L*W*H)
|
11.8*5.5*0.78in
|
300*140*20mm
|
